High Strength Hot-dip Galvanized Steel Photovoltaic Brackets

High Strength Hot-dip Galvanized Steel Photovoltaic Brackets

Hot-dip galvanized photovoltaic brackets are hot-dip galvanized on the surface to improve corrosion resistance. The bracket is typically made from steel or aluminum, it can be customized designed for different terrains and installation needs. Its advantages are improved corrosion resistance, long service life, high strength and good stability.

Material: Q235 or Q355

Foundation Type: Driven Pile,Ground Screw or Concrete

Galvanized Thickness: 70um -100um,Per Local Codes

Wind Load: ≤60m/s,Per Local Codes

Snow Load: ≤16KN/M,Per Local Codes &

INQUIRY NOW

PRODUCT CATEGORY

Ground Screws
Solar PV Ground Mounting System
Solar PV Roof Mounting System
Solar PV Bracket Rail & Guider
Solar PV Bracket Support
PV Bracket BIPV Gutter
Solar PV Bracket Pile
solar PV Accessories

New Products

Screw Piles

Screw Ground

Helical Screws

Ground Screw Piles

Ground Solar Panel Mounts

DESCRIPTION

High Strength Hot-dip Galvanized Steel Photovoltaic Brackets

Features

Hot-dip galvanized photovoltaic brackets are hot-dip galvanized on the surface to improve corrosion resistance.
The bracket is typically made from steel or aluminum, it can be customized designed for different terrains and installation needs.
Its advantages are improved corrosion resistance, long service life, high strength and good stability.

Advantage

1. Heavy snow load or strong wind areas
2. Hot -dip galvanized thickness 70um -100um
3. Customizable design
4. Quick assembly

Technical Parameters

Parameter Description

Material
Q235 or Q355

Design Standard
JIS C8955 -2011.AS/NZS 1170.0,IEC62817,etc.

Foundation Type
Driven Pile, Ground Screw or Concrete

Galvanized Thickness
70um -100um, Per Local Codes

Wind Load
≤60m/s, Per Local Codes

Snow Load
≤16KN/M，Per Local Codes

Module Type
Compatible with all modules

Panel Layout
Portrait or Landscape

Service Life
≥30 years

Warranty
20 years

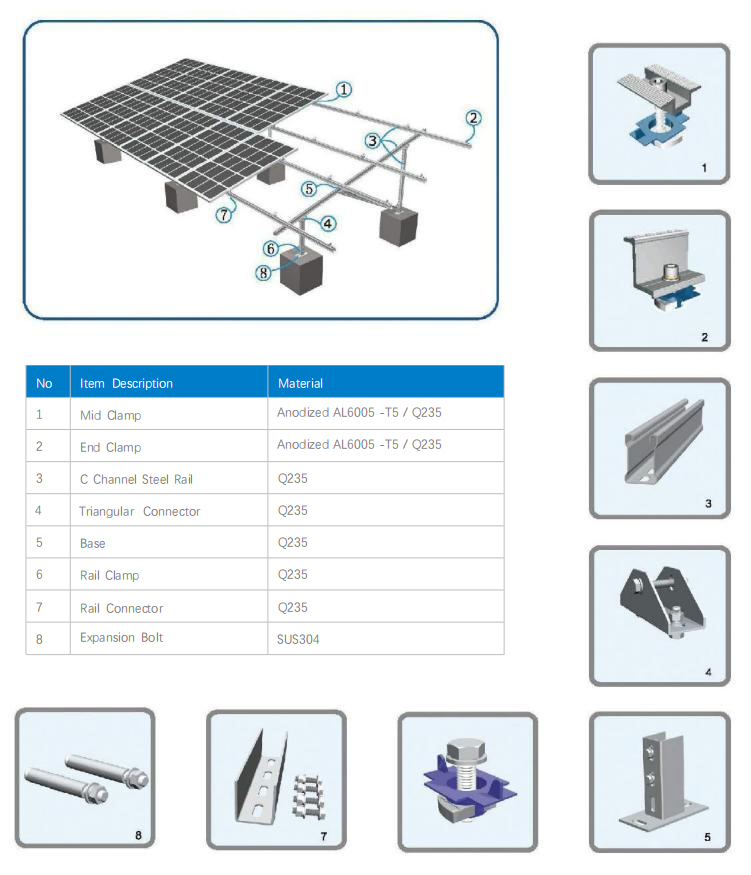

Components Details
